أداة تشكيل رول مثالية من إنتاج PUTAI.

آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 1
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 2
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 3
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 4
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 5
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 6
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 7
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 8
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 1
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 2
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 3
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 4
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 5
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 6
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 7
آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي 8

آلة تشكيل زوايا الجدران عالية السرعة | شركة بوتاي

✅  كفاءة عالية & دقة

  • مصممة ل  زوايا الجدار  الإنتاج، مثالي للهياكل الفولاذية والجدران الفاصلة وأنظمة الأسقف.

  • سرعة التشكيل تصل إلى 40 متر/دقيقة ، مما يقلل من وقت الإنتاج بمقدار  30%  مقارنة بالطرق التقليدية.

✅  الأتمتة الذكية

  • تم تجهيز آلة تشكيل حبات الزاوية هذه بـ نظام التحكم بشاشة اللمس PLC  لضبط المعلمات بنقرة واحدة، مما يقلل من الخطأ البشري.

  • القطع واللكم والعد التلقائي  للتشغيل المستمر بسلاسة.

✅  متين & صيانة منخفضة

  • تعمل الأسطوانات عالية الصلابة المستوردة من ألمانيا (HRC 58-62) على إطالة عمر الخدمة من خلال  50% متوافق مع  0.3-2.0 مم من الفولاذ المجلفن/الفولاذ المقاوم للصدأ .

  • التصميم المعياري  يتيح الاستبدال السريع للمكونات الحيوية، مما يقلل تكاليف الصيانة بنسبة  20% .

✅  مرونة قابلة للتخصيص

  • يدعم التخصيص غير القياسي للزوايا التي تتراوح من  20×20 مم إلى 150×مم150 .

    وجه الفتاة...!

    لا توجد بيانات المنتج.

    الذهاب إلى الصفحة الرئيسية

    Product Description


    This corner bead forming machine is designed to produce metal profiles of various shapes and sizes. It can be used to form a variety of shapes including round, oval, square, rectangular, and more. The machine is composed of several rollers which are used to roll the metal into the desired shape. The rollers can be adjusted to accommodate different thicknesses of metal. The machine can be used to produce a wide range of products including roofing, siding, decking, and more. The machine is easy to operate and can be used to produce high-quality products in a short amount of time.

    high speed wall angle machine_0050_IMG_9186

    Product Specifications

    Machine Description Wall Angle Machine
    Cutting Blade Material Cr12
    Control System servo cutting
    Automatic Grade Automatic
    Shaft Material 45# Steel Forging Treatment
    Shaft Diameter 50mm
    Productivity 0-100m/Min
    Transmission Worm-Gear Box
    Forming Rows 10rows
    Control Type CNC
    Certification CE, RoHS, TUV
    Transport Package 7.8m*1.3m*1.4m

    Product Details

    32996903-f54d-4ee2-89df-cd2dd03b31a0

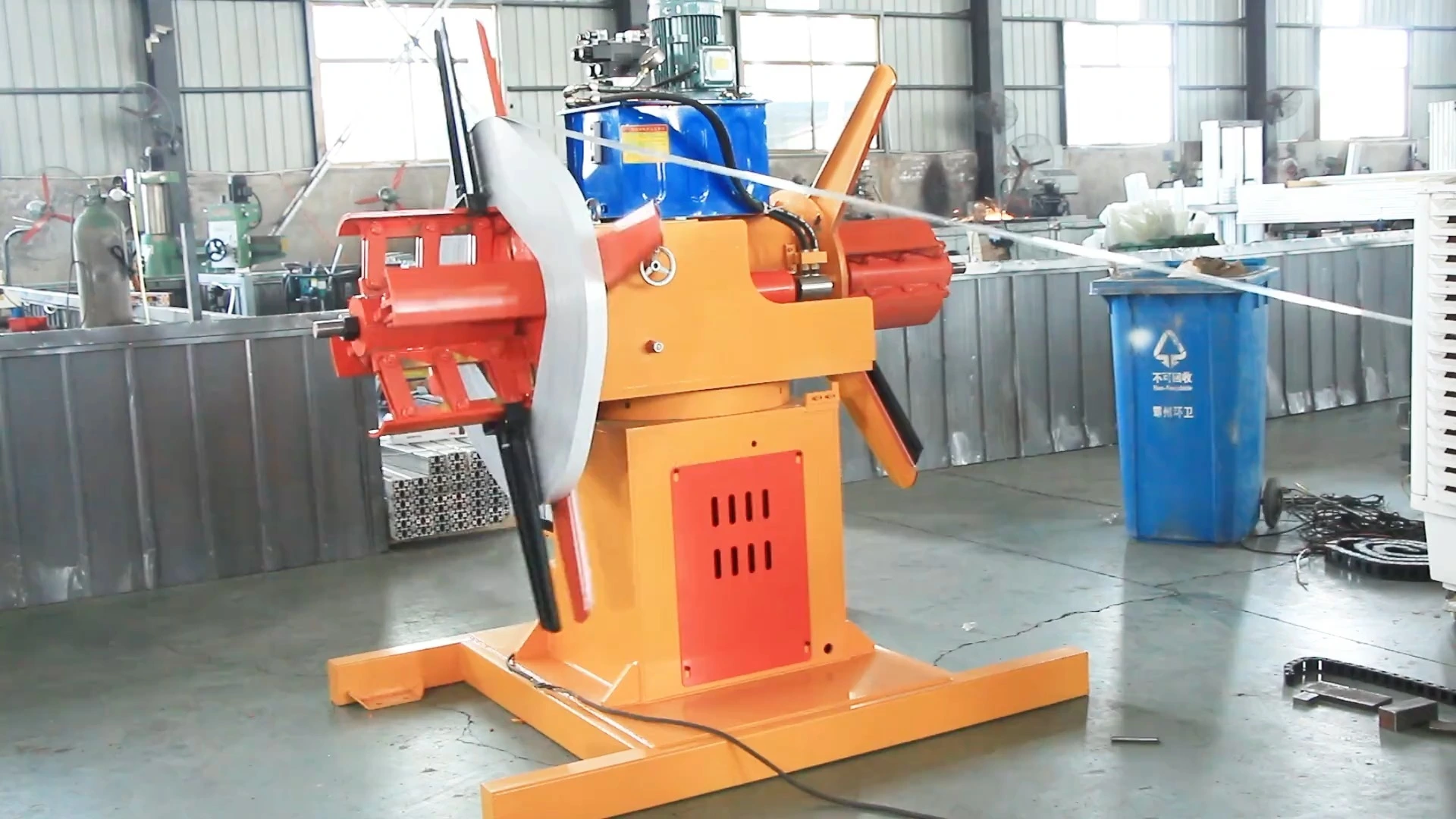

    Uncoiler
    Put the steel coil on it for feeding raw material
    A03
    Entry Beach
    Put the raw material (steel plate) through the beach to manufacture and process
    A01
    Main Roll Forming Machine
    In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear box transmission, roller surfaces polishing, hard plating, heat treatment
    high speed wall angle machine_0027_IMG_9225
    Servo system cutting
    The servo motor drives the tracking system, which sets the product length by measuring the length with a counter or locating the product length with a photoelectric switch hole.
    high speed wall angle machine_0081_IMG_8110
    Collecting Product Table
    Manual Simple collecting product table

    company Profile

    幻灯片3


    Our company has 20+ years in the ceiling frame field. Product quality is stable,high-cost performance,excellent design engineers,and good processing technology to ensure the quality of the equipment and performance passed the quality system certification and has a complete and scientific quality management system. Its design and production of the product not only best-selling domestically but also exported to Southeast Asia,the Middle East,South America,North America,Europe,and other countries and regions,has won widespread praise and high praise! Company main products: Metal profile steel forming machine,Ceiling T grid forming machine Light steel framing packing machine,and all kinds of cold roll forming machines. The company is located in Tianjin,The traffic is very convenient. We insist on quality as the root,the prestige of this service principle,all the staff welcome you to come to discuss cooperation!


    幻灯片11
    幻灯片9
    幻灯片10
    幻灯片5

    FAQ

    Tell us about your project requirements and we will figure out a solution that will meet your budget and design expectations.

    1
    Do you have after sales support?
    Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
    2
    How do your machines compare with other big companies in this market?
    We are up to date with the latest technology and improve our machines accordingly
    3
    How does your factory do regarding quality control?
    Quality is priority. we always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
    4
    Do you sell only standard machines?
    No, most of our machines are built according to customers specifications, using top brand name components
    5
    Can you make the machine according to my design or proto type?
    Yes. We have an experienced team for working out the most suitable design and production plan for the roll forming machine that you are going to book with us
    6
    How can we be assured that you will deliver us quality machine with spare parts?
    1. Customers to send the technical people to our factory for checking the quality. 2.We can send the technicians to the buyer`s factory for the installation of the machine. 3.Good aftersales-service, its free of charge during the warranty period.
